Product Description:
The High Concentrating Mixing Tank is a reliable and efficient solution for slurry mixing in various industries. It is specifically designed to store and mix bulk materials like cement and fly ash, making it suitable for diverse applications. With its advanced design, this tank ensures thorough mixing of the pulp and medicament, creating optimal conditions for beneficiation operations. It is widely used in chemical, mining, and other industries for a range of mixing applications.
Product Specifications:

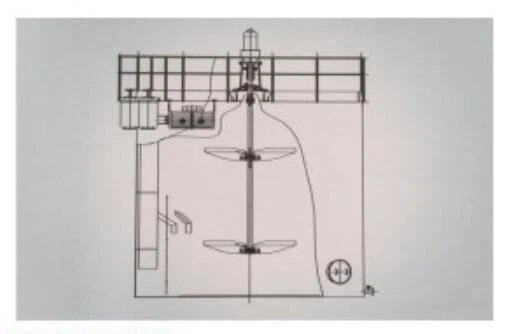

Structure: The High Concentrating Mixing Tank features a unique structure with a hollow shaft leading to the bottom, allowing air to enter. The tank is equipped with two new impellers that have large diameters and low speeds, resulting in low power consumption and reduced carbon wear.
Stirring Concentration: This tank is specifically designed for the agitation of higher concentration pulp, such as mixing after concentration or mortar mixing. It can handle a stirring concentration of up to 75%.
Mixing Impeller: The mixing impeller of this equipment is crafted using high-quality materials, ensuring excellent wear resistance and long-term durability.
Product Application:
The High Concentrating Mixing Tank finds extensive application in a variety of industries, including chemical, mining, and more. It is particularly suitable for mixing higher concentration pulp after concentration or for mortar mixing.
Working Principle:
The working principle of the High Concentrating Mixing Tank involves the rotation of the impeller, which leads to the circular motion of the pulp and pharmaceuticals. As a result, the mixture is evenly distributed throughout the tank, and the mixed suspension liquid is discharged from the overflow part.
Product Advantages:
Efficient Mixing: The High Concentrating Mixing Tank is designed with two large-diameter impellers that operate at low speeds, ensuring low power consumption and efficient mixing.
Wear Resistance: The mixing impeller of this tank is made of high-quality materials, offering excellent wear resistance and extended durability.
Uniform Dispersion: This tank provides a moderate stirring intensity, leading to uniform dispersion and the formation of small bubbles. This improves cyanide in and out rates and carbon adsorption rates.
Features:
1.Specialized Agitation: The High Concentrating Mixing Tank is specifically designed for the agitation of higher concentration pulp, making it ideal for mixing after concentration or mortar mixing.
2.Dual Impellers: The tank is equipped with upper and lower helical impellers that work in opposite directions, enhancing the mixing process and ensuring thorough blending.
3.Durable Construction: The mixing impeller is made of high-quality materials, ensuring excellent wear resistance and long-lasting performance.
Product Advantages:
High Concentrating Mixing Tank has a hollow shaft leading to the bottom, through which air can enter the interior. Our product uses two new impellers with large diameter, low speed, low mixing power consumption, etc., which can effectively reduce carbon wear. Its stirring intensity is moderate, with uniform dispersion and small bubbles, which can increase the cyanide in and out rate and carbon adsorption rate.
Feature:
1. This High Concentrating Mixing Tank is used for the agitation of higher concentration pulp, such as mixing after concentration, mortar mixing etc.
2. The stirring concentration of 75%, the upper and lower helical two opposite impeller.
3. The mixing impeller of this equipment is made of high-quality raw materials, which has good wear resistance and durability.
Technical Parameters:
| Speclication ( mm) (DiameterHeight) | Vol (m³) | Material percent (%) | Minerall size (mm) | Ilmpeller | Motor | Capacity (m³/h) | Dimension(mm) (WidthHeight) | Weigh(kg) | |||
| Dia (mm) | Speed (r/min) | Model | Power | Speed (r/min) | |||||||
| 1500*15000 | 2.25 | <70 | 0.15~ 0.053 | 500 | 280 | Y200L2-6 | 18.5 | 975 | 40 | 1666*2810 | 2207 |
| 2000*2100 | 5.8 | <75 | <3 | 650 | 24 | Y200L2-6 | 22 | 975 | 80-100 | 2410*2268 | 2976 |
| 4000*4000 | 46 | <60 | -200 mesh 90% | 1000 | 121.6 | Y250M-8 | 30 | 730 | - | 4365*5242 | 8156 |
Selection Description:
To ensure optimal performance, users must provide information regarding the media concentration and particle size.
Company Introduction:
With over 21 years of experience in the mining machinery industry, our company has established a strong presence in the global market. We have successfully exported our products to more than 50 countries and regions, including Tanzania, Iran, Chile, Venezuela, Peru, Russia, Ukraine, Georgia, Kazakhstan, South Korea, Yemen, Australia, Indonesia, Malaysia, Vietnam, and various countries in Africa.
Our Commitments:
Competitive Pricing: We offer factory prices, providing our customers with cost-effective solutions.
Extensive Experience: With more than 30 years of industry experience, we are dedicated to providing exceptional service and expertise.
Customization: We understand the unique requirements of our customers and can customize our products according to their specific needs.
Warranty and Support: We offer a one-year warranty to ensure consistent machine performance. Additionally, we provide lifelong services and spare parts, guaranteeing long-term satisfaction.
For further inquiries or to request a customized quotation, please contact us.
