Description:

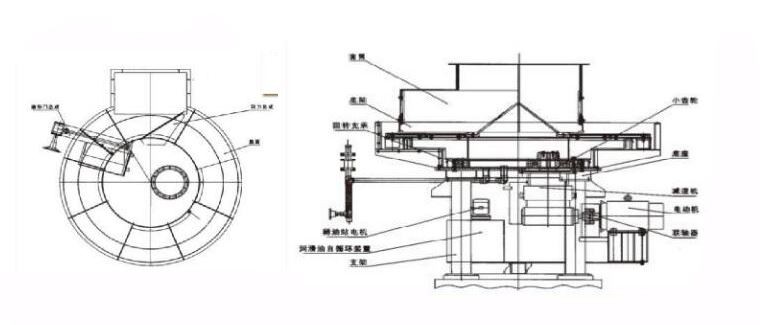

Disk Feeder in Mining Feeder is a volumetric metering feeding equipment. It is a suspension type, which can uniformly and continuously feed materials to the next process, and can withstand large warehouse pressures. Our product is complex in structure and durable. This equipment can be hung on the bottom of fine ore bins, and are suitable for feeding powdered materials with a particle size of less than 20mm.
Main Features:
1. Disk Feeder in Mining Feeder has a firm structure, good airtightness, and is very simple to operate. It is suitable for feeding various non-sticky materials.
2. Our product is mainly driven by gears, with low noise, high efficiency, low energy consumption and very environmentally friendly.
3. It has been tested and improved many times by us, with reliable running performance and more convenient maintenance.
4. This Disk Feeder in Mining Feeder has the characteristics of simple structure, uniform feeding, and a wide range of applications.
Technical Parameters:
|
Model |
Disc dia |
Capacity |
Feeding size |
Extrmul hanged |
Motor |
Weight |
|
|
Model |
Power |
||||||
|
DK6 |
600 |
0.6~3.9 |
25 |
Hang |
Y90L-6 |
1.1 |
403 |
|
DK8 |
800 |
1.4~7.6 |
30 |
Hang |
Y90L-6 |
1.1 |
555 |
|
DK10 |
1000 |
2.5~16.7 |
40 |
Hang |
Y100L-6 |
1.5 |
827 |
|
DK13 |
1300 |
4.2~27.9 |
50 |
Hang |
Y132S-6 |
3 |
1150 |
|
DK16 |
1600 |
7~48.6 |
60 |
Hang |
Y132M1-6 |
4 |
2125 |
|
DK18 |
1800 |
9.2~60 |
70 |
Hang |
Y132M2-6 |
5.5 |
2900 |
|
DK20 |
2000 |
13.6~88 |
80 |
Hang |
Y132M2-6 |
5.5 |
3140 |
